This tracker is a new product based on the GSM GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
- Initialization, send SMS (begin 123456) to the unit, it replies OK, then you initialize all the settings to default factory settings.
- Change password, send your old and new password (remember to add the word password before your password )separates by a space.
- Authorization, there are 5 numbers to be allowed to authorize in the tracker at most.
- Single tracking, make a missed call to device number, it will reply a real time tracking message include longitude and latitude.
- Continuous tracking automatically, send specified format message, it will report data at every 10s when the object is moving and every 500s when it is static.
- Data logging, it can log the tracking position and alerts automatically in the SD card.
- Alarms, it sets with low battery alarm, power off alarm, GPS blind spot alarm, SOS alarm, GEO-fence alarm, movement alarm, overspeed alarm, ACC working alarm and vibration alarm.
- It can cut off and resume the oil and power system of your vehicle.
- You can set up arm by the SMS and the remote controller, you can disarm through the same way too.
- It can switch between GPRS and SMS mode, track and monitor mode, and TCP and UDP mode.
- With it, you can check the vehicle state, IMEI, and reset SMS, set time, GPRS, APN, IP and port, and monitor central number.
The remote control has two versions, it will be random when delivering.
GPS Signal: GSM 850/900/1800/1900MHz
Network : GPRS,GSM
Voltage Range: 12V - 24V
GPS Sensitivity: - 159 dBm
GPS Start Time: Cold status:45s, Warm status:35s, Hot status:1s
GPS Positioning Precision : 5M
Pre-loaded Maps: No
Package weight: 0.610 kg

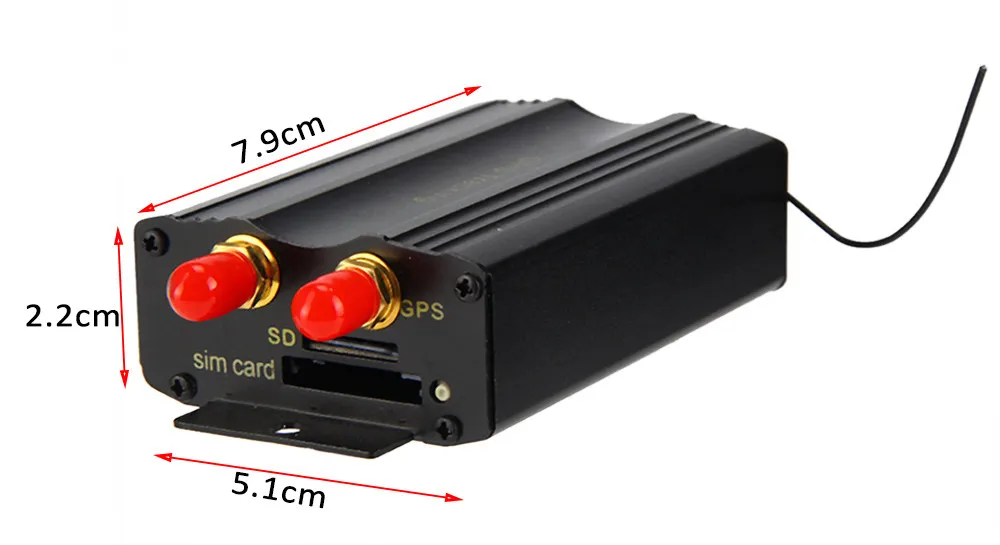

Product size (L x W x H): 7.90 x 5.10 x 2.20 cm / 3.11 x 2.01 x 0.87 inches
Package size (L x W x H): 8.90 x 6.10 x 3.20 cm / 3.5 x 2.4 x 1.26 inches
Package Contents: 1 x TK103B GPS SMS GPRS Vehicle Tracker, 1 x GPS Antenna, 1 x Microphone, 1 x GSM Antenna, 1 x Wire, 1 x Relay, 1 x Keyless Entry, 1 x Card Slot, 1 x Bilingual User Manual In English and Chinese
